MOTORCYCLE ENGINE TIMING CHAIN

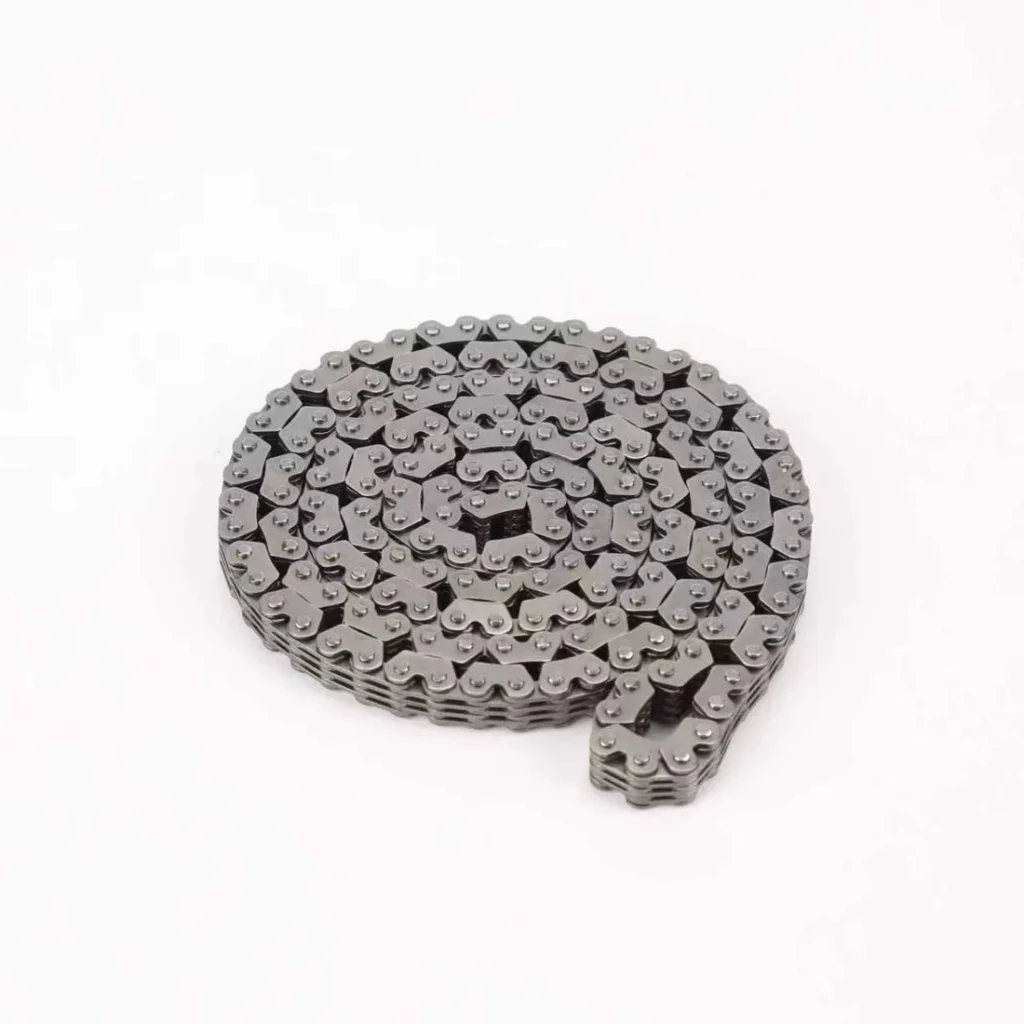

CL04-9LW Motorcycle Timing Chain
4×5 plate lacing in the LW straight-plate family. Match tooth profile, guide arrangement and link count to the engine.
- Model
- CL04-9LW
- Plate lacing
- 4×5
- Finish
- Natural; custom finish by review
- Link count
- 100L reference; other lengths by review
Technical specifications
| Pitch P / mm | 6.35 |
|---|---|
| Width W / b1 / mm | 7.2 |
| Pin diameter / mm | 2.50 max |
| Pin length / mm | 10.6 |
| Plate thickness / mm | 0.80 |
| Catalogue tensile load, min / kN | 9.00 |
| Catalogue average tensile load / kN | 10.50 |
| Catalogue fatigue load / kgf | 210 |
| Hole centre to tooth / mm | 3.90 |
Dimensions in mm unless stated. Catalogue values are reviewed against the agreed drawing and order requirements. A shared chain code alone does not establish interchangeability.
View owner-supplied technical reference ↗Specify this chain for your order.
Include quantity, link count, connecting link, finish, packaging and destination. MOQ, lead time, samples and inspection documents are agreed against your requirement.
