MOTORCYCLE ENGINE TIMING CHAIN

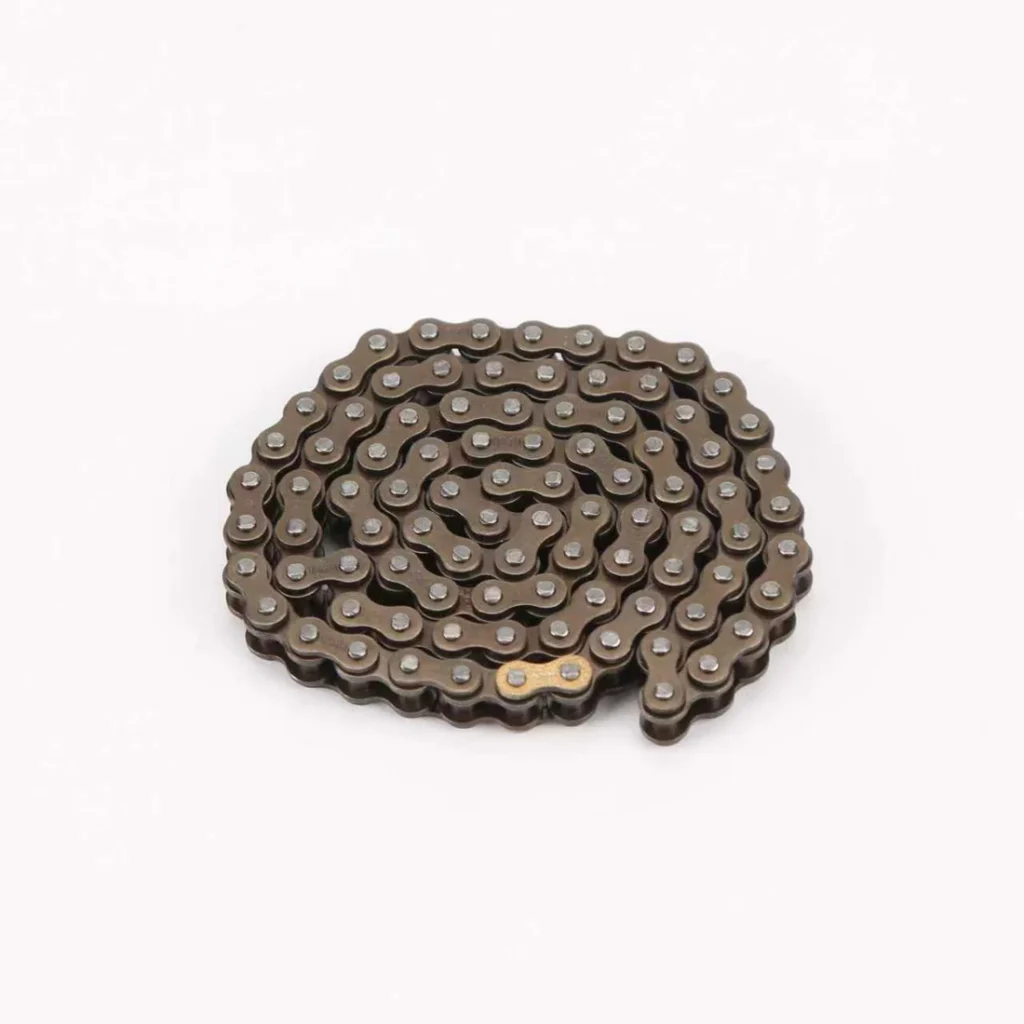

25H Motorcycle Timing Chain
A compact cam-chain family for engine-parts distributors and private-label sourcing.
- Model
- 25H
- Finish
- Natural / gold
- Link count
- 84L reference; other lengths by review
Technical specifications
| Pitch P / mm | 6.35 |
|---|---|
| Width W / b1 / mm | 3.10 min |
| Pin diameter / mm | 2.31 max |
| Pin length / mm | 9.90 max |
| Plate thickness / mm | 1.00 / 1.00 max |
| Inner plate height / mm | 6.02 max |
| Catalogue tensile load, min / kN | 4.50 |
| Catalogue average tensile load / kN | 5.60 |
| Weight / kg per m | 0.17 |
Dimensions in mm unless stated. Catalogue values are reviewed against the agreed drawing and order requirements. A shared chain code alone does not establish interchangeability.
View owner-supplied technical reference ↗Specify this chain for your order.
Include quantity, link count, connecting link, finish, packaging and destination. MOQ, lead time, samples and inspection documents are agreed against your requirement.
